Uprights

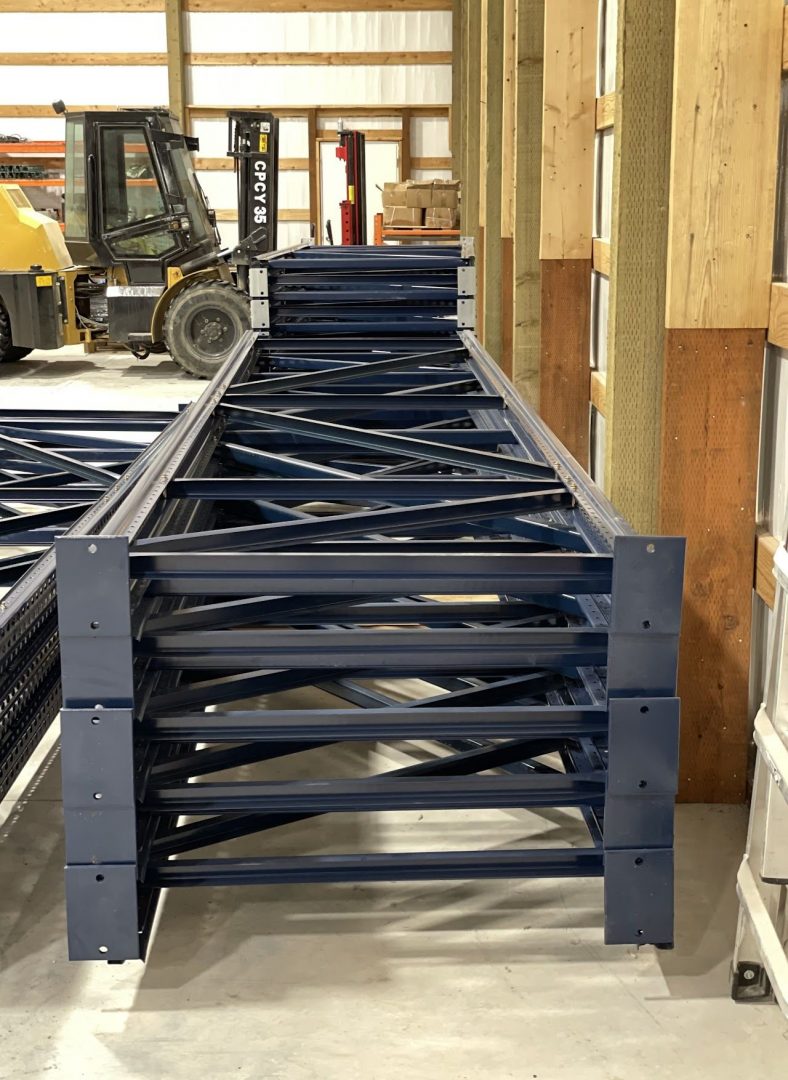

Pallet Rack Uprights
The product we carry is Interlake brand, USA made. All product is universal teardrop style. We have standard duty uprights with 5″ footplates and heavy duty uprights with 7″ seismic footplates — prices are below.
Widths: 24″, 36″, 42″ and 48″ · Heights: 7′, 8′, 10′, 12′, 16′ and 20′
7 Foot
Rated 16,716 lbs @ 48″ beam spacing
8 Foot
Rated 16,716 lbs @ 48″ beam spacing
10 Foot
Rated 20,867 lbs @ 48″ beam spacing
12 Foot
Rated 20,867 lbs @ 48″ beam spacing
16 Foot
Rated 20,867 lbs @ 48″ beam spacing
20 Foot
Rated 20,867 lbs @ 48″ beam spacing
Must be purchased in truckloads
High-bay frames for big warehouses — call for truckload pricing and lead time.
22′ × 36″, 42″, 48″
12 gauge · 8″ × 8″ base plate · 31,000 lb capacity
25′ × 36″, 42″, 48″
12 gauge · 8″ × 8″ base plate · 31,000 lb capacity
28′ × 36″, 42″, 48″
12 gauge · 8″ × 8″ base plate · 31,000 lb capacity
FAQ
Pallet Rack Uprights: common questions
How tall should my pallet rack uprights be?
Measure your building's clear height (floor to the lowest obstruction — sprinklers, lights, joists) and leave at least 18″ below sprinkler heads. Most warehouses use 8′ to 16′ uprights; we stock 7′ through 20′, and 22′–28′ frames by the truckload.
What depth upright do I need?
Standard 48″ × 40″ pallets sit on 42″ deep uprights, giving 3″ of overhang front and back. Use 36″ for shallower loads and 48″ for deeper ones.
What's the difference between standard and heavy-duty uprights?
Our standard-duty uprights have 5″ footplates; heavy-duty uprights have 7″ seismic footplates and higher capacity ratings — up to 20,867 lbs with 48″ beam spacing.
Complete the system
Have a question or want a quote?
Email or call for an instant estimate — our sales team responds even after business hours. In-person bids at your warehouse, delivery in 2 – 5 business days.
